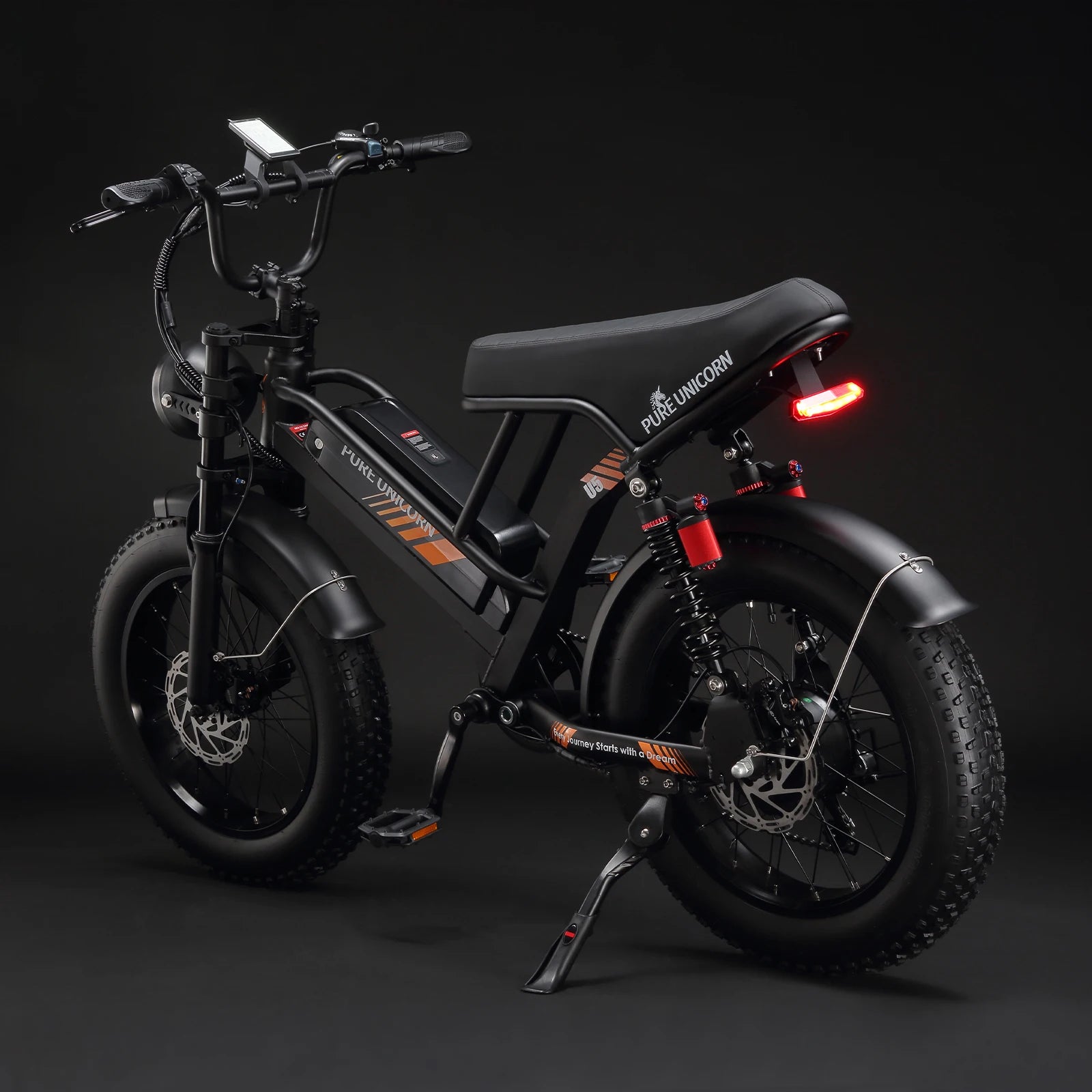

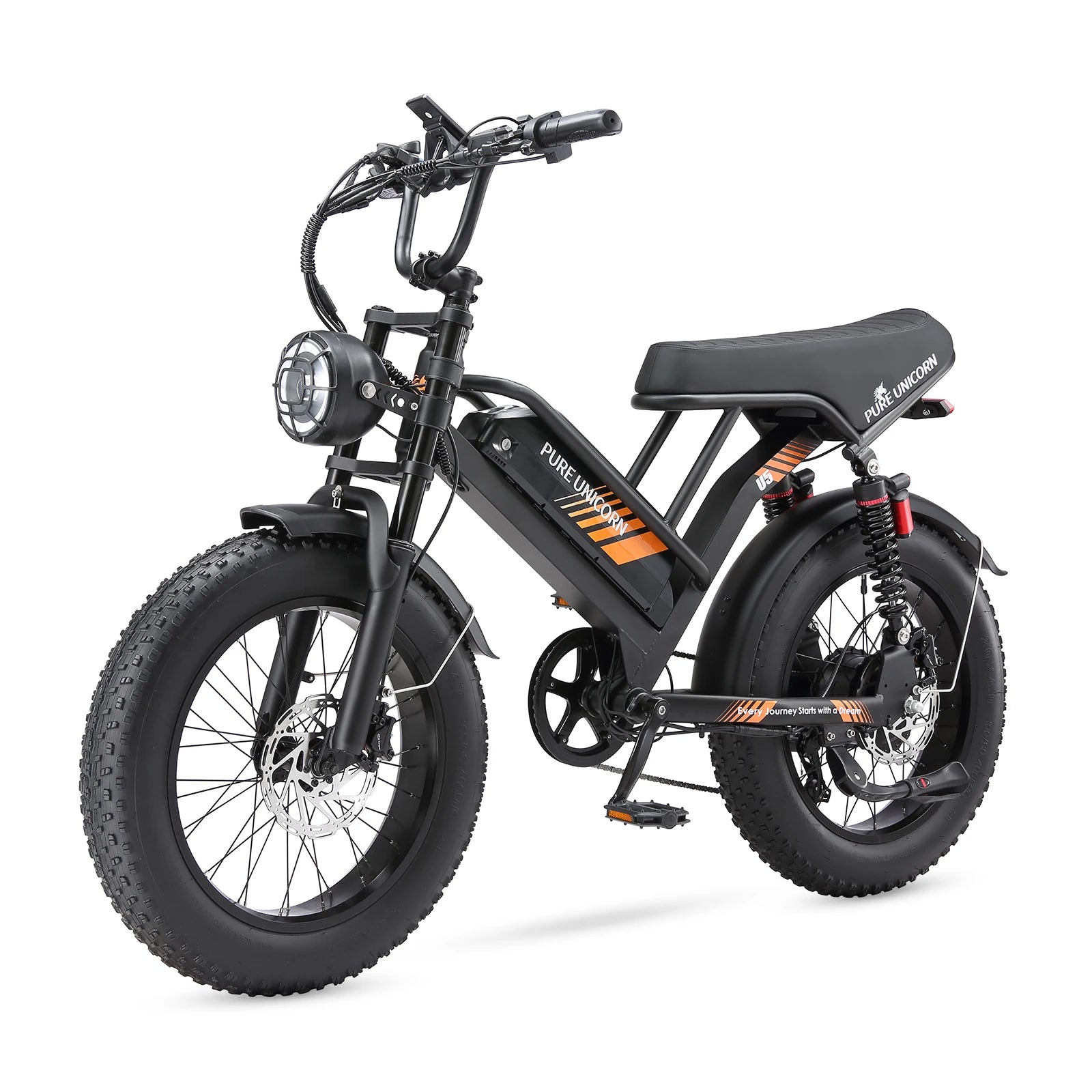

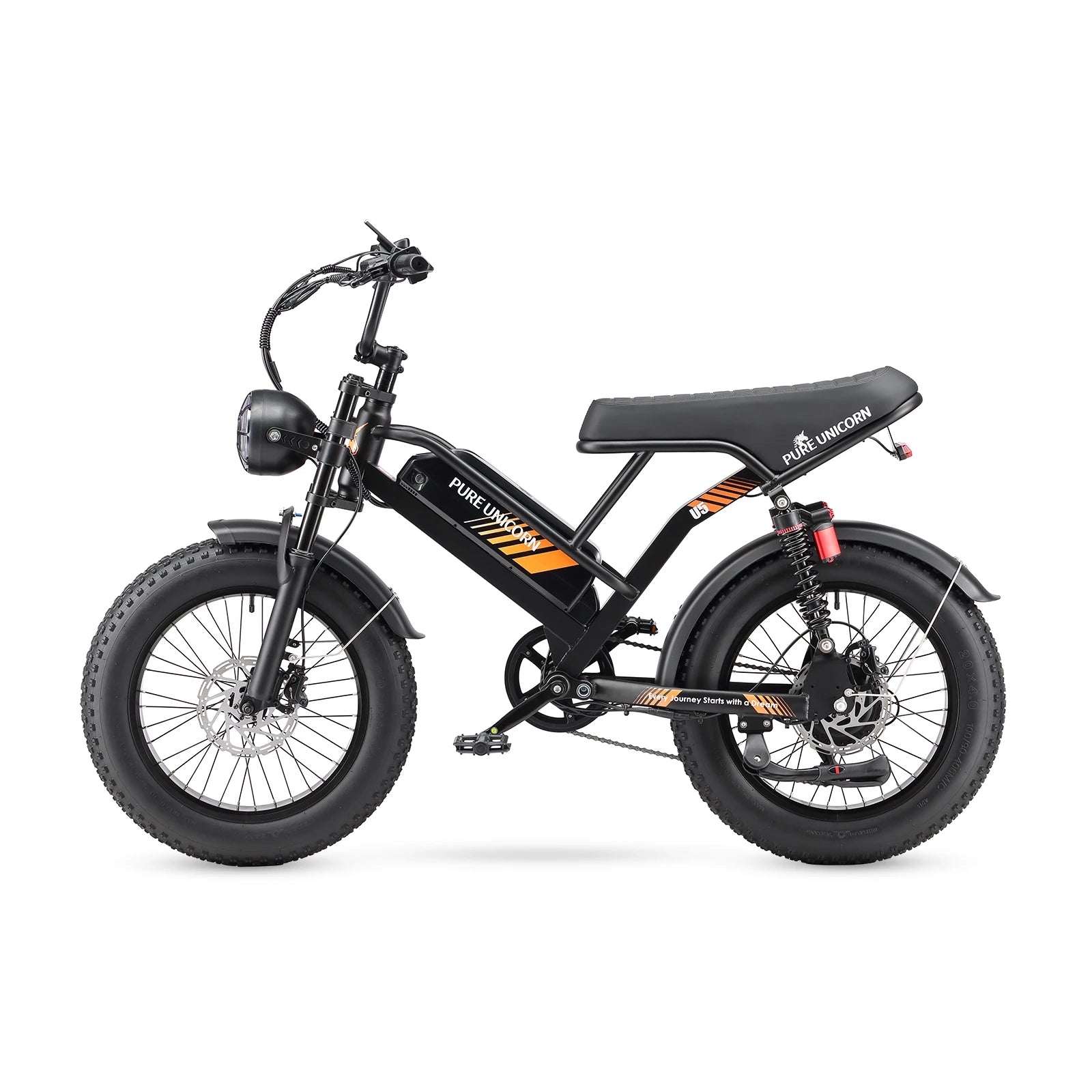

Pure Union 1000W Electric Bike
SPECIFICATIONS
Battery: 48V 19.2Ah Removable Lithium Battery

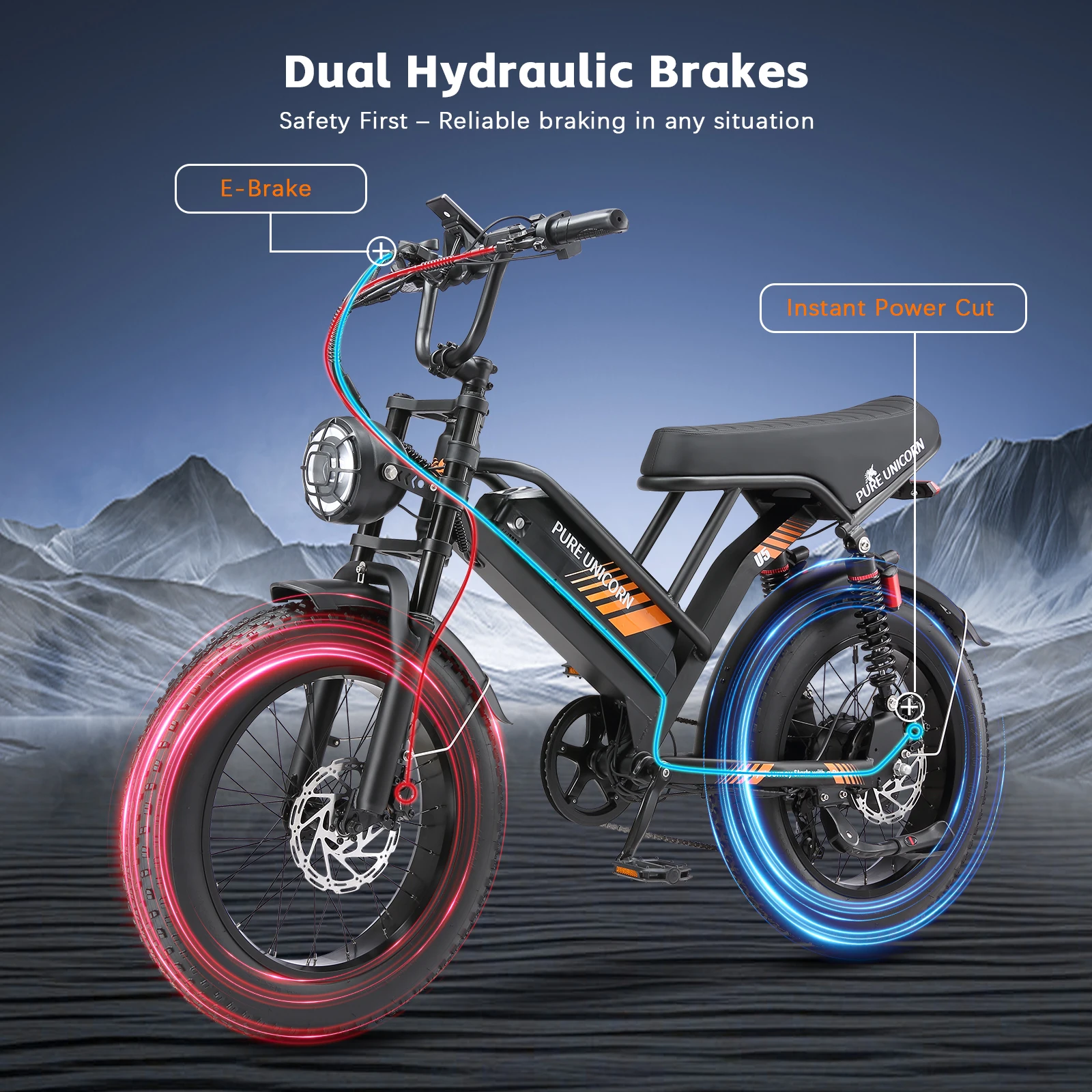

Brake System: Front and Rear Hydraulic Brakes
Brand: PURE UNICORN
Brand Name: PURE UNICORN
Certification: CE
Charging Time: 7-9 Hours
Climbing Ability: Up to 20°
Color: Black & Orange

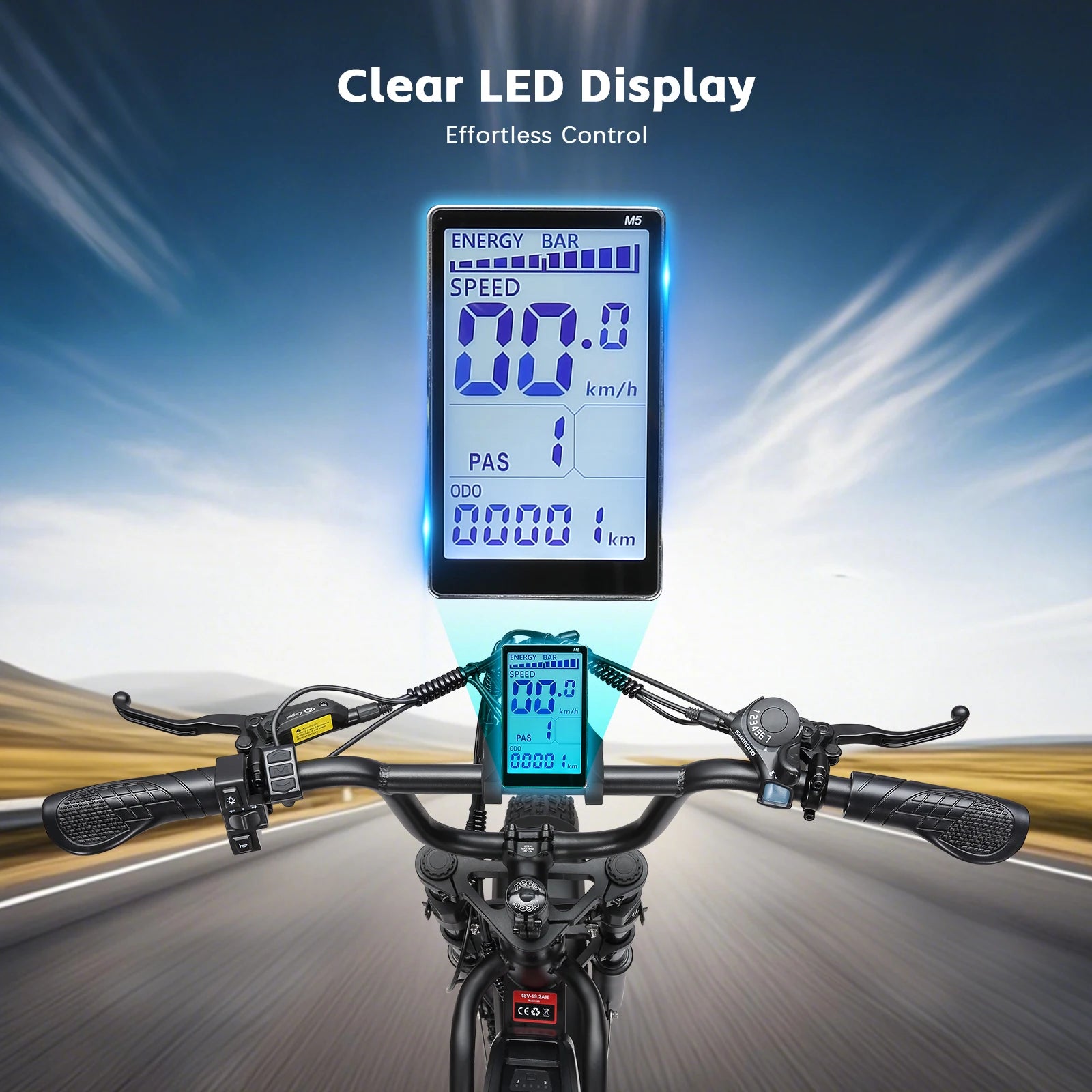

Display: LED Display
Fender: Front and Rear Fenders
Frame Material: High-Carbon Steel
Gross Weight: 47.5kg

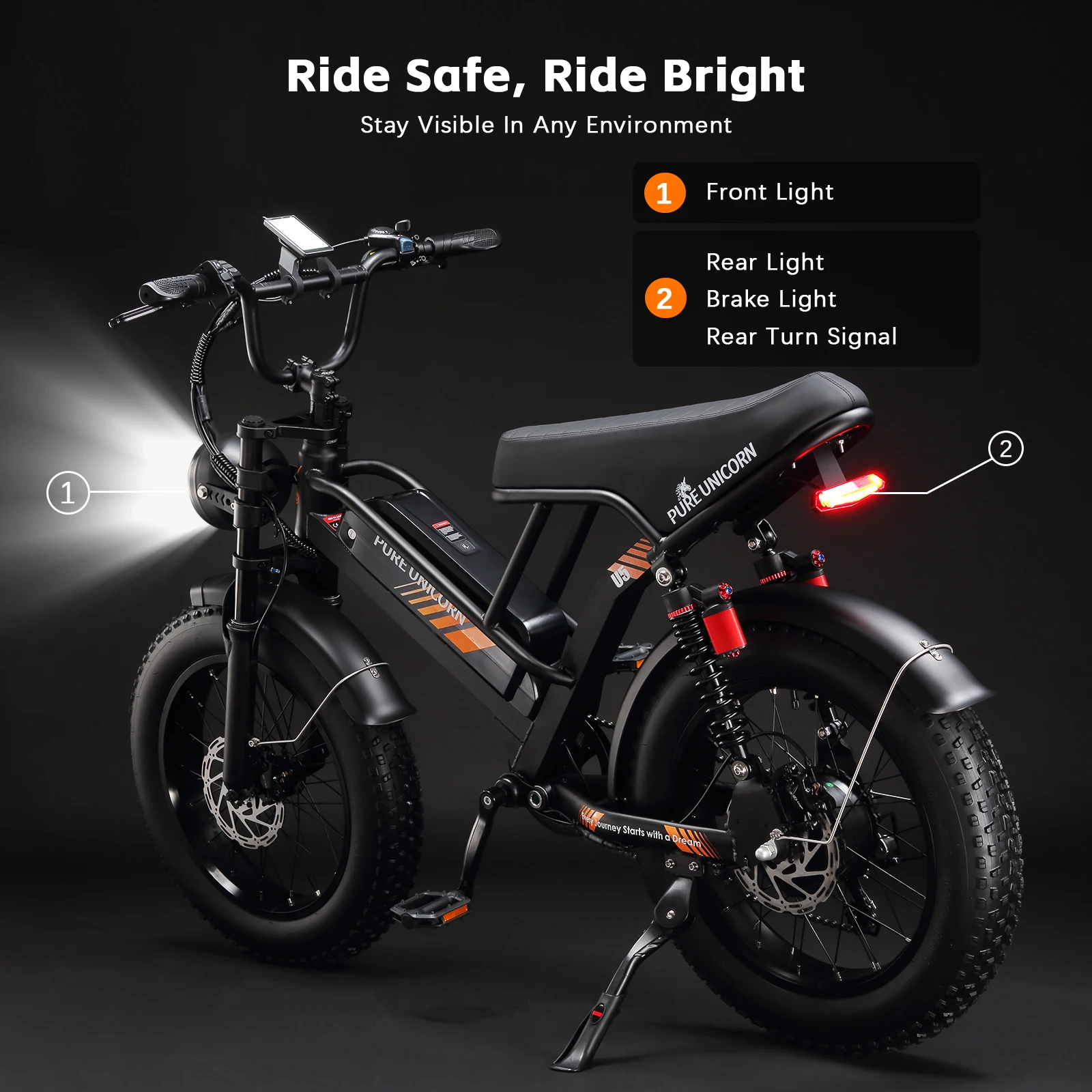

Lighting System: Front Light, Rear Light, Brake Light, Rear Turn Signals
Max Load: 150kg (330 lbs)
Max Range: 55-80km (Actual range may vary based on rider weight, terrain, incline, and environmental factors.)
Model: U5

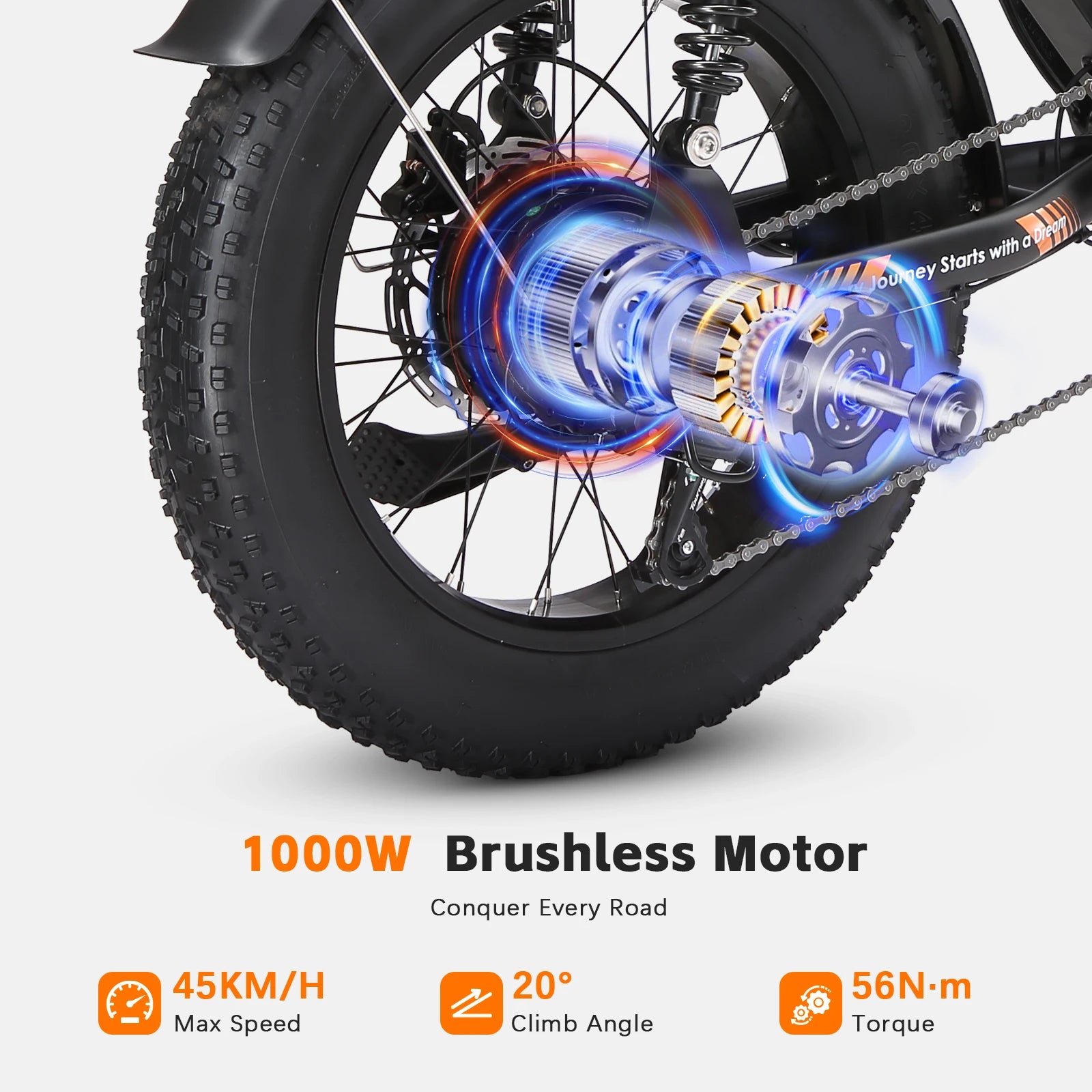

Motor: 48V 1000W Brushless Motor
Net Weight: 37kg
Origin: Mainland China
Package Size(L x W x H): 139 x 32 x 77cm
Power Source: Lithium Battery
Power Supply: Lithium Battery

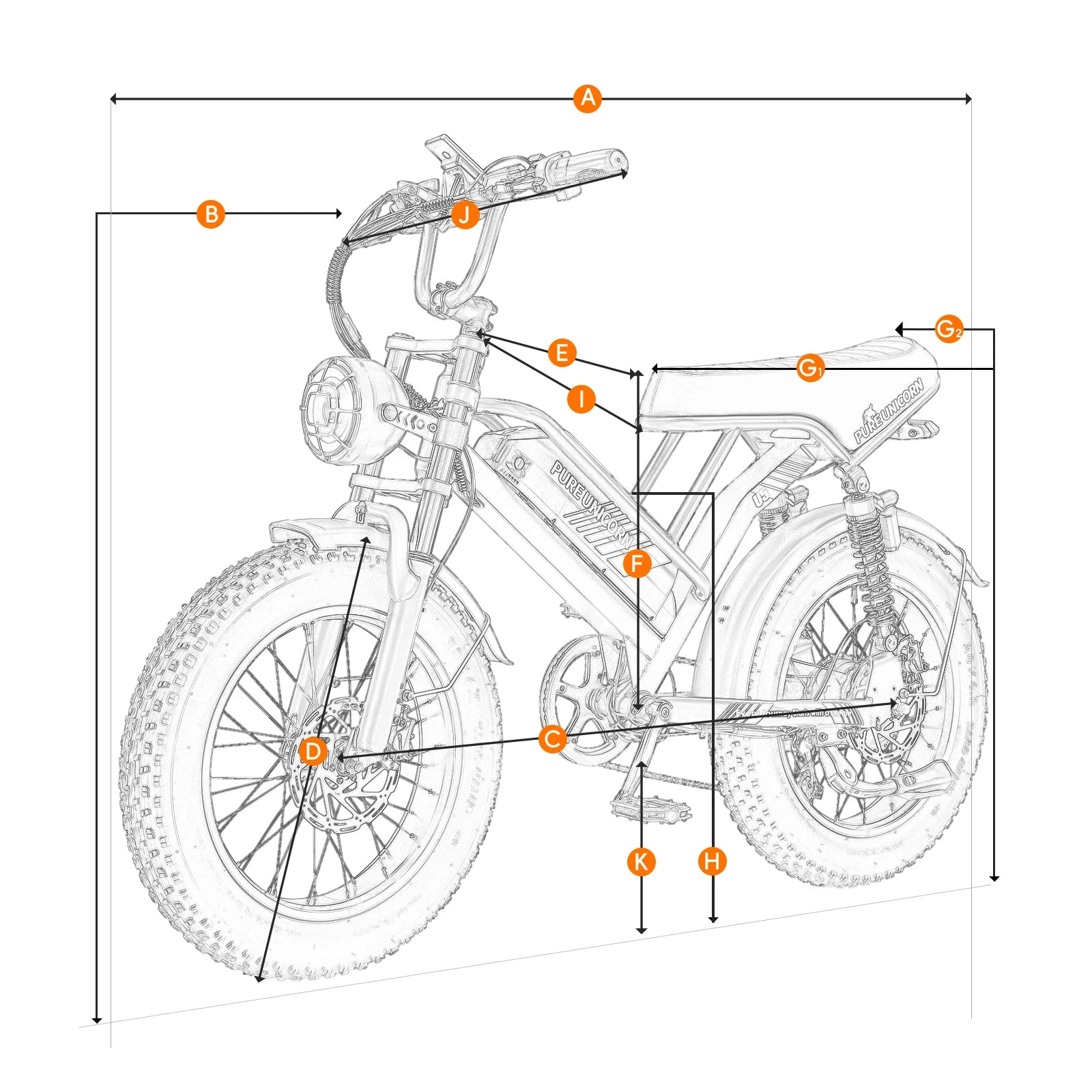

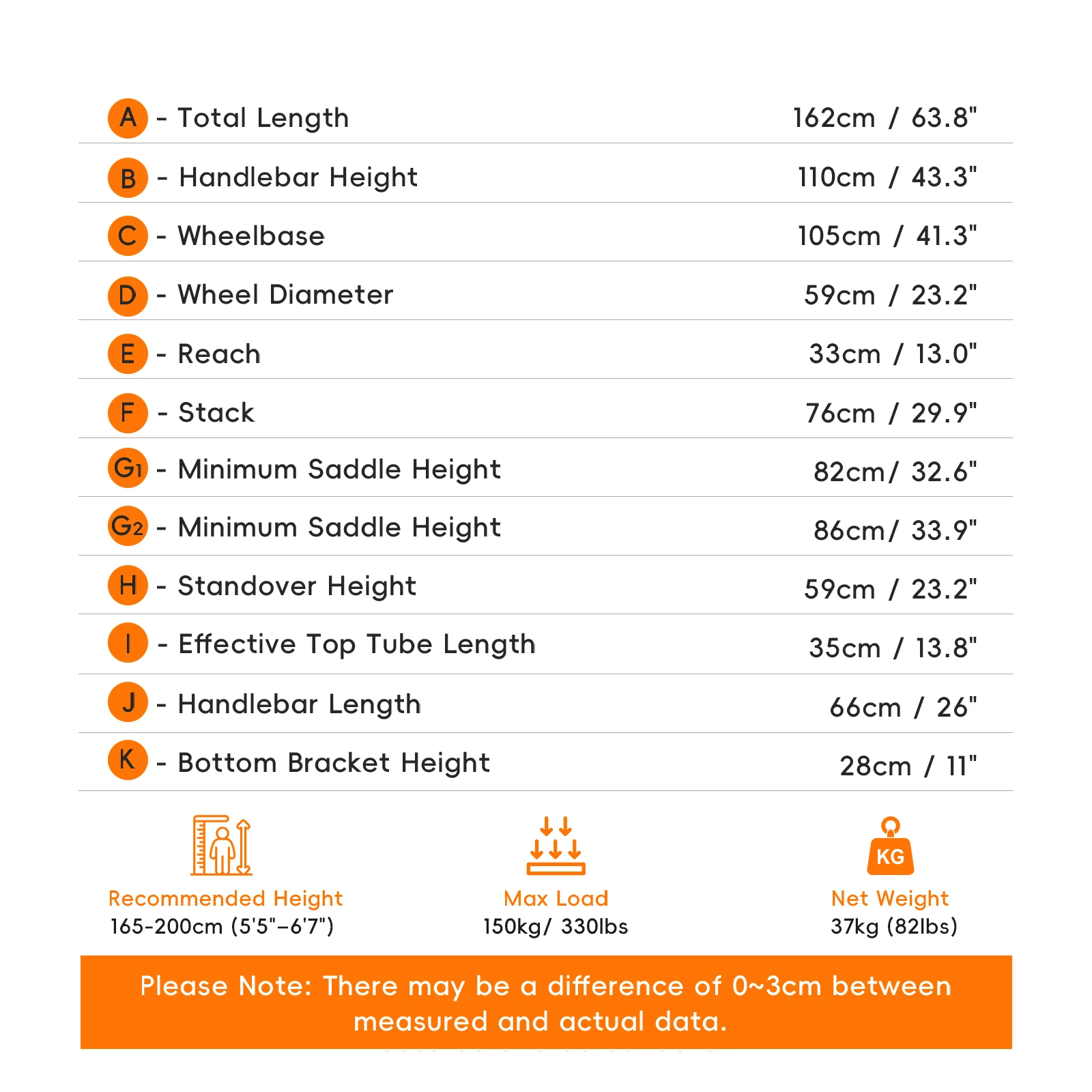

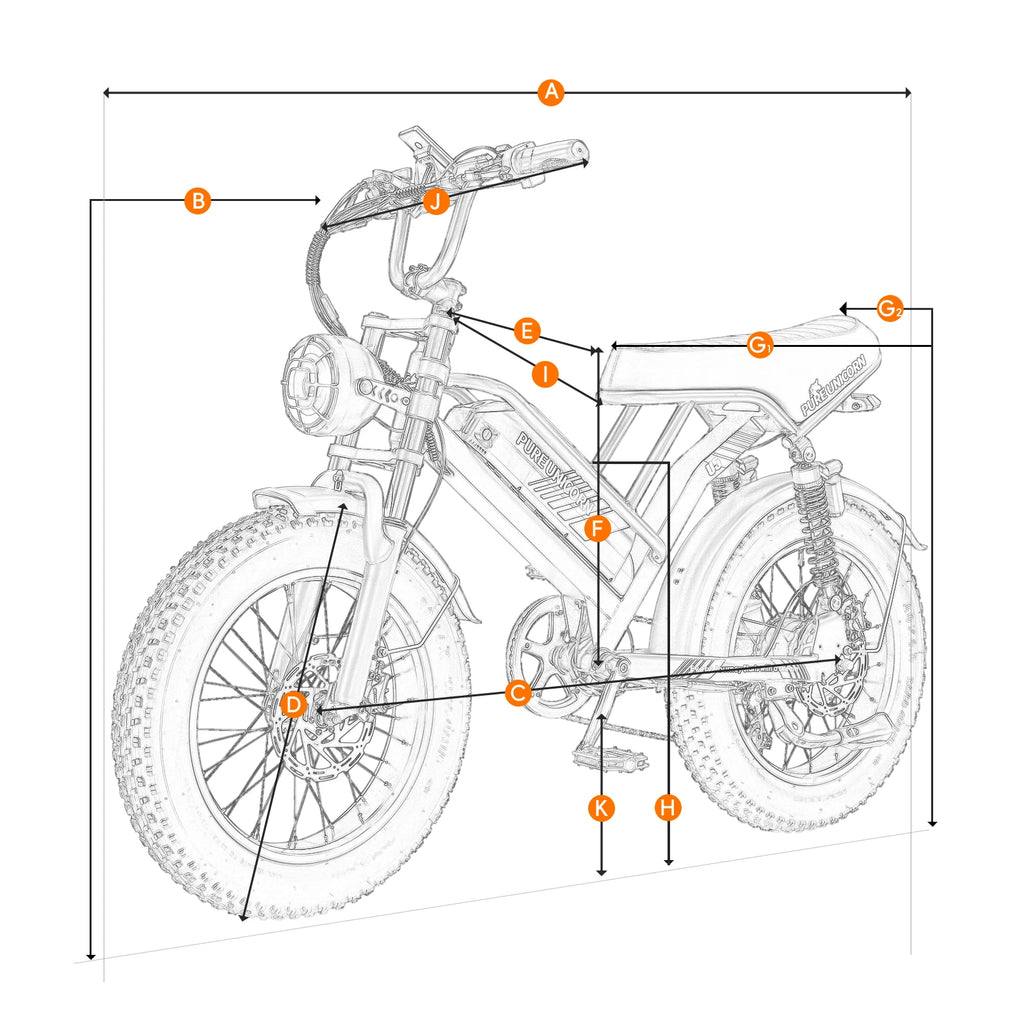

Product Size(L x W x H): 162 x 66 x 112cm
Recommended Rider Height: 165-200cm (5'5"-6'7")
Recommended Speed: 25km/h

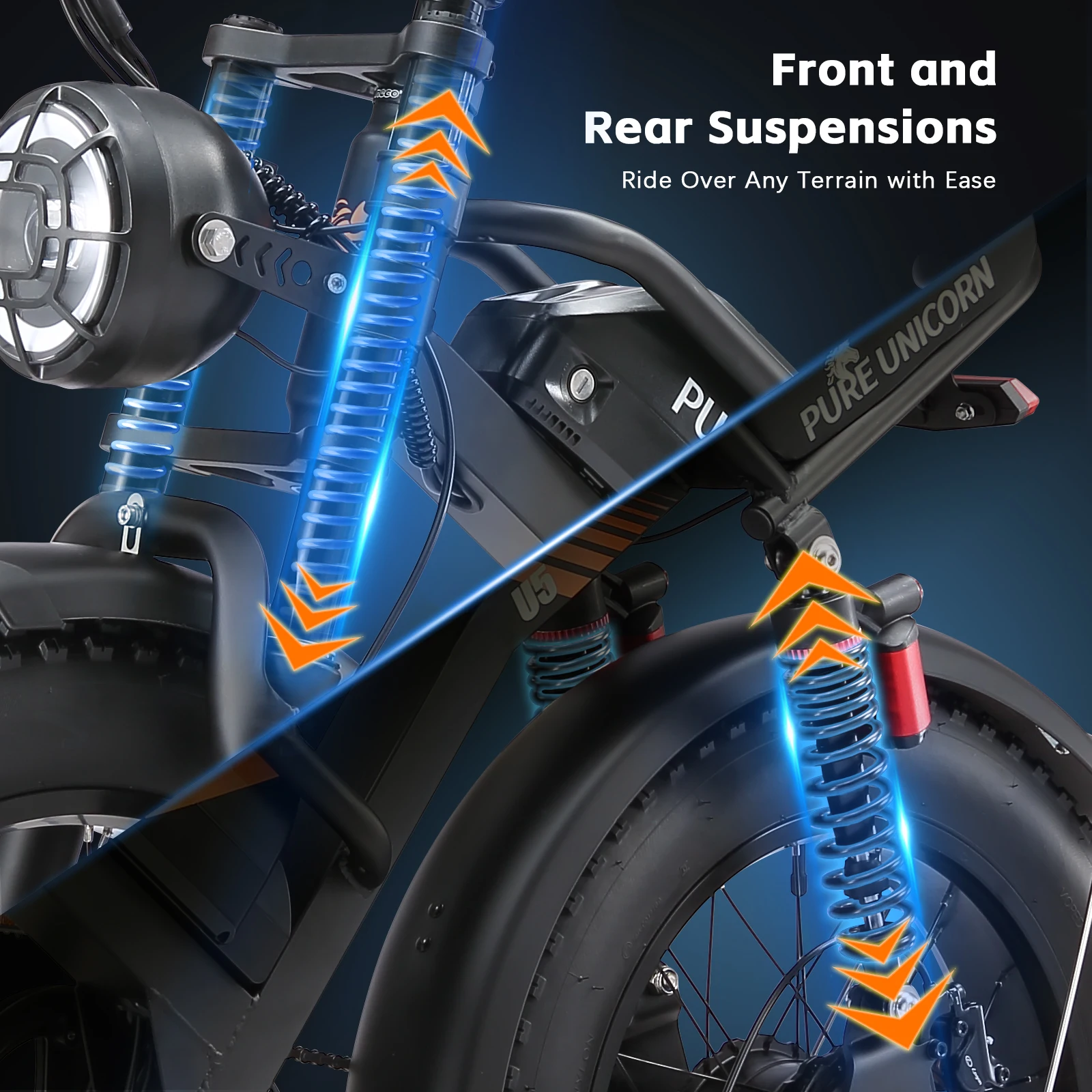

Suspension: Front and Rear Suspension
Tire Size: 20 x 4.0" Fat Tires
Top Speed: 45km/h (Actual speed may vary based on rider weight, terrain, incline, and environmental factors.)
Torque: 56N.m
Transmission: Shimano 7 Speed
Voltage: 48V
Warranty: 12 Months
Waterproof Rating: IP54

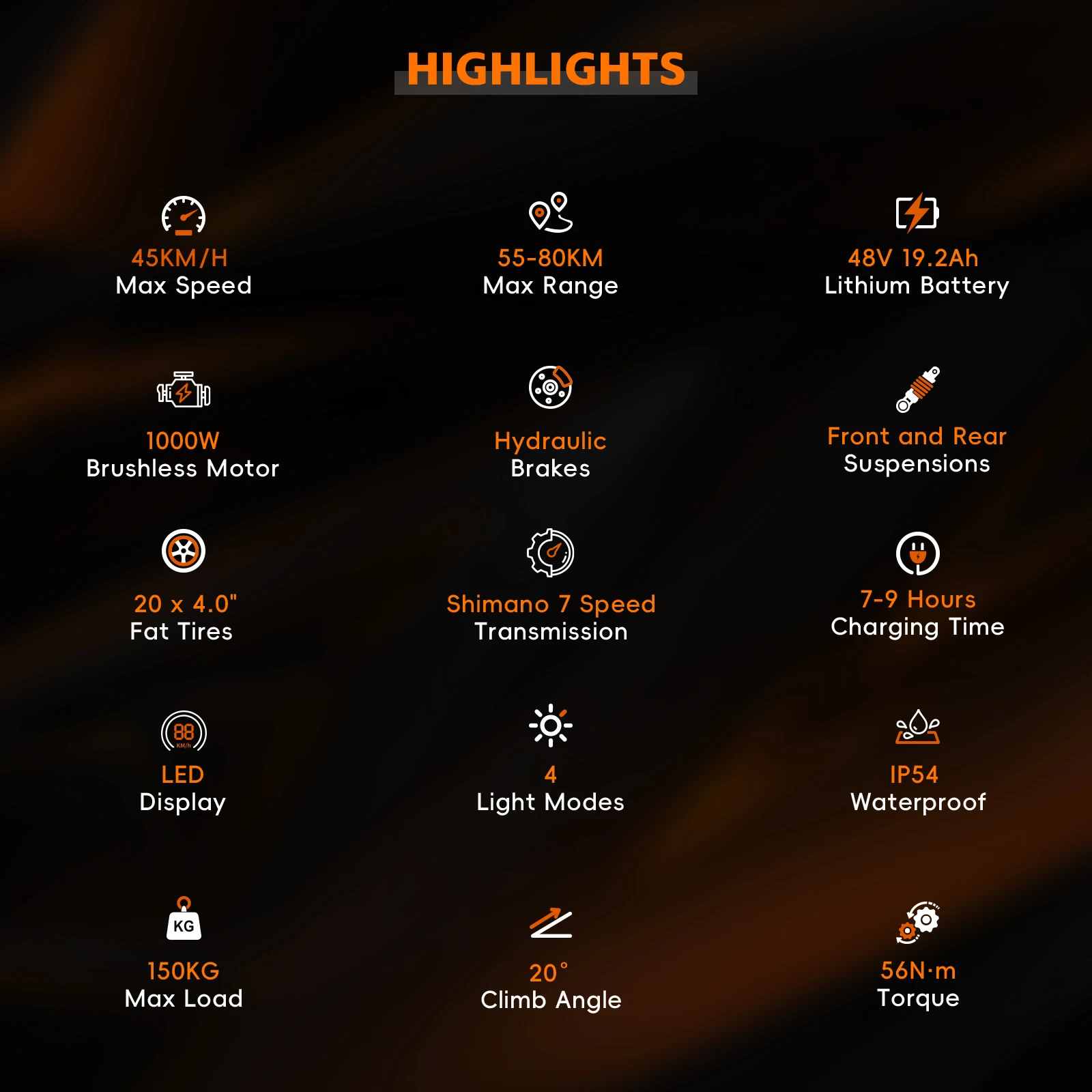

Key Features
1. Powerful 1000W Motor: Enjoy strong acceleration, 56N·m torque, and speeds up to 45km/h—tackle hills and city streets with ease.

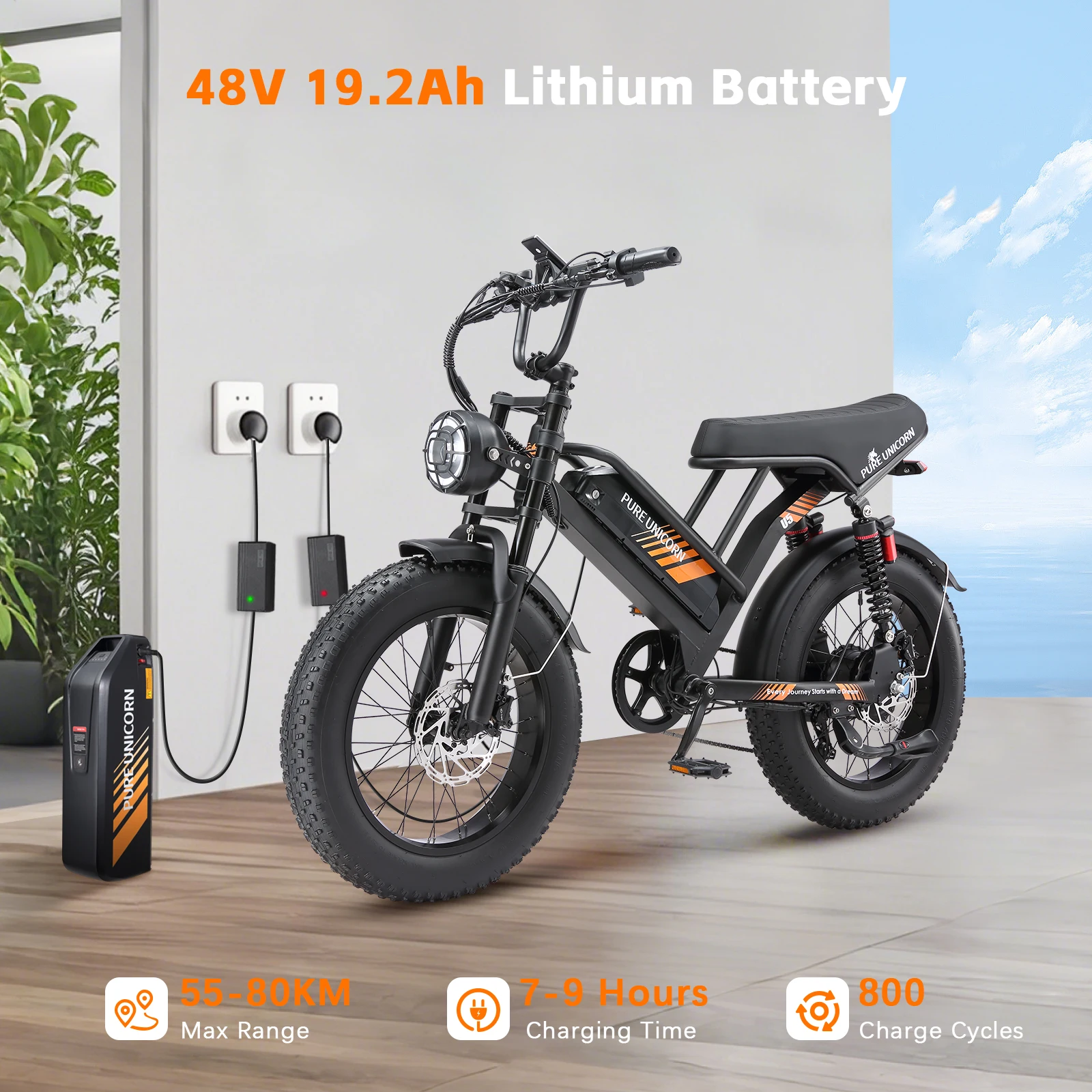

2. Long-Range Battery: 48V 19.2Ah removable battery provides up to 80km per charge.

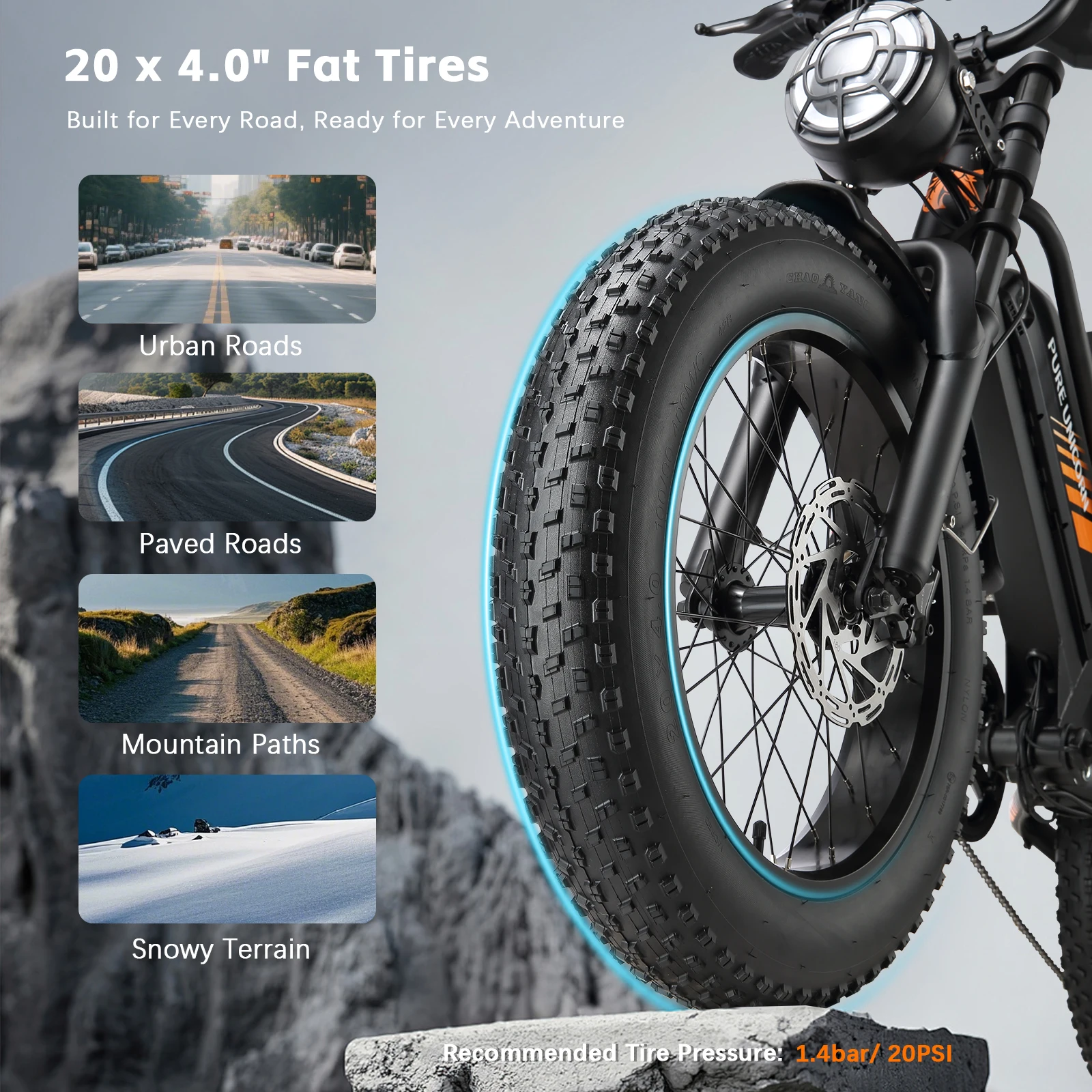

3. 20" Fat Tires: Wide 4.0" tires deliver maximum stability and grip for all terrains.
4. Full Suspension & Hydraulic Brakes: Front and rear suspension plus hydraulic disc brakes ensure a smooth, safe ride.
5. High-Carbon Steel Frame: Durable and built to last, supports riders 165–200cm (5'5"–6'7") and up to 150kg (330 lbs).

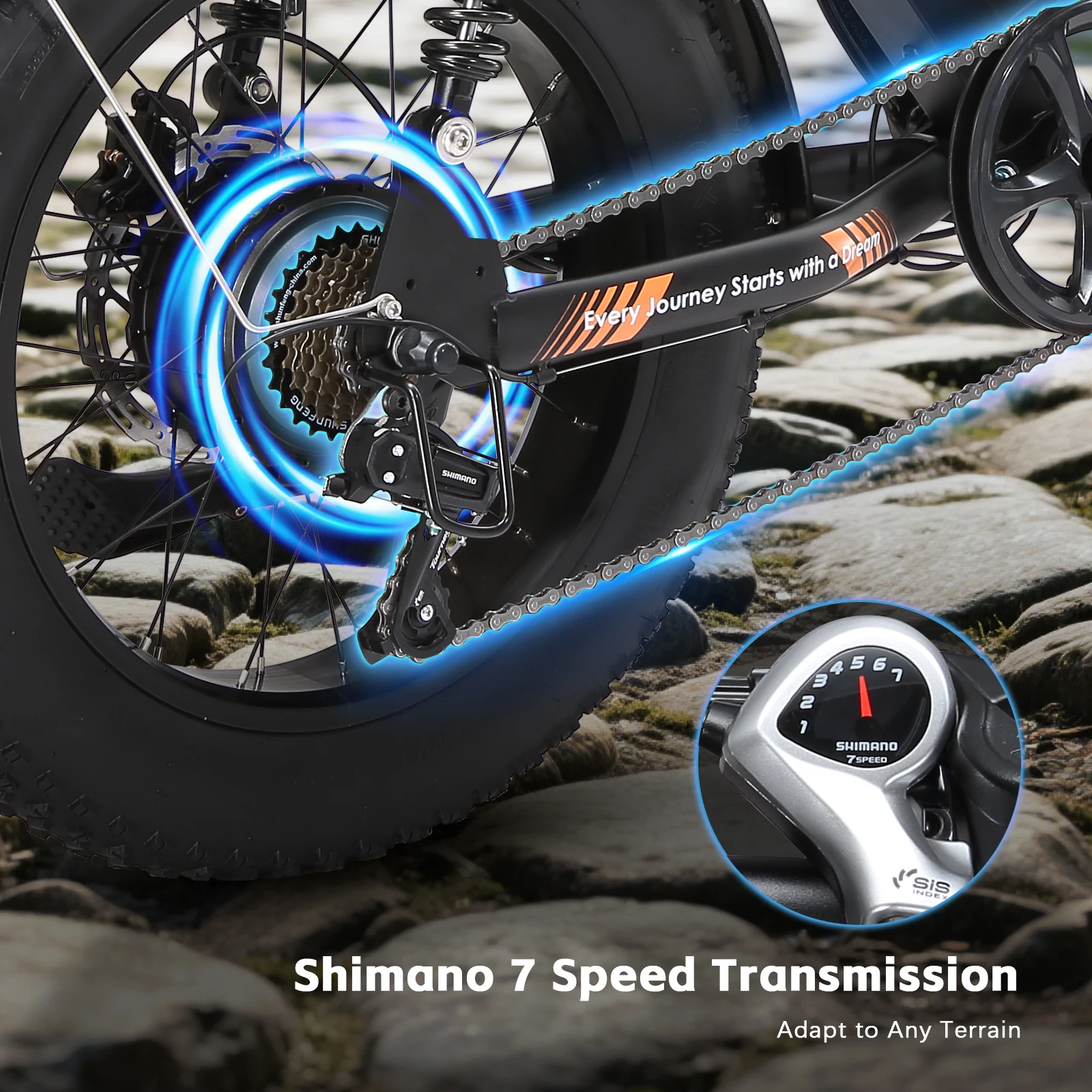

6. Shimano 7-Speed Transmission: Easily adapt to changing terrain and riding needs.

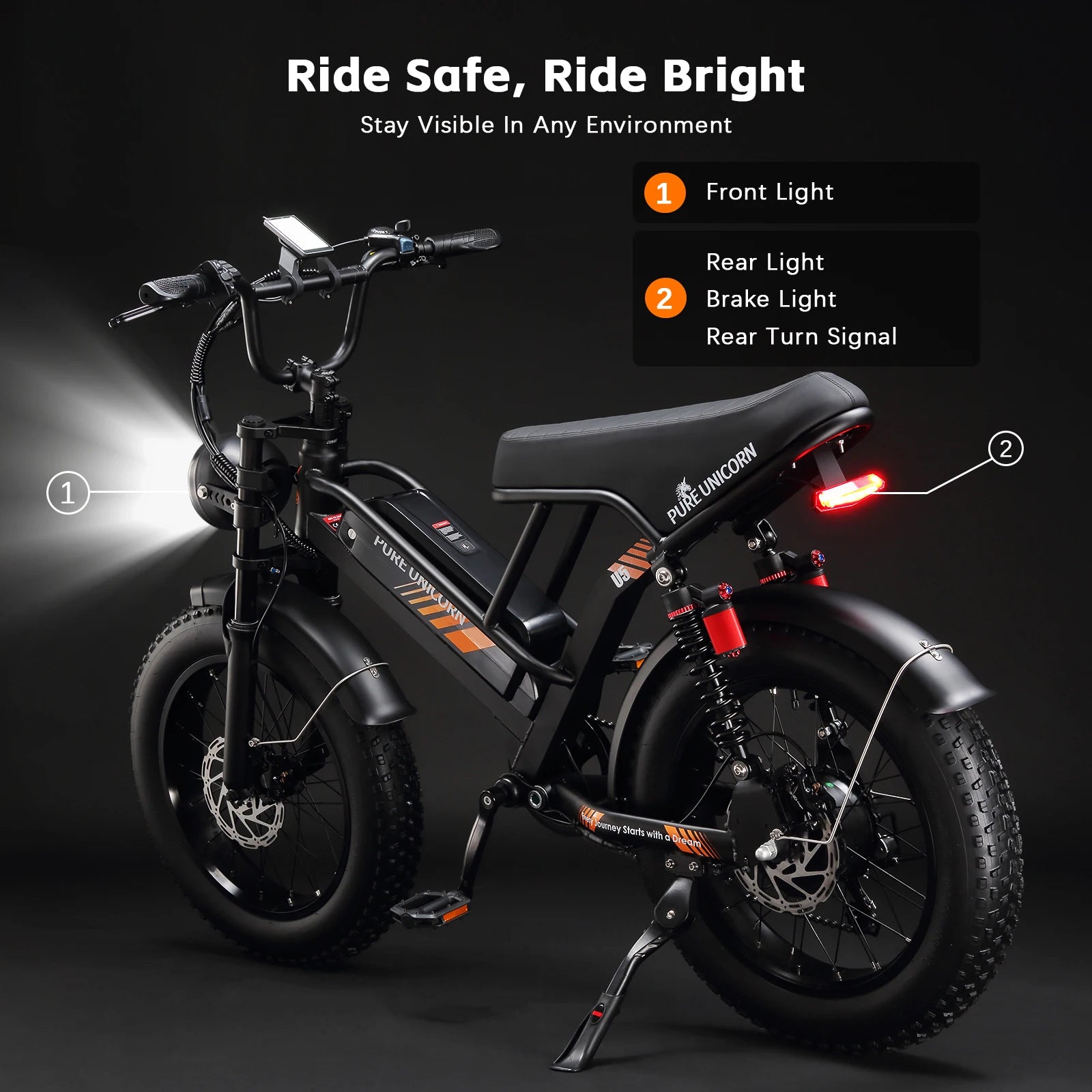

7. Fully Equipped: LED display, front/rear lights, brake light, rear turn signals, and full fenders for safety and convenience in any weather.
8. Certified Quality & Warranty: CE certified with a 12-month warranty for total peace of mind.













Quick Tips for Your PURE UNICORN E-Bike
Order Confirmation
Once your PURE UNICORN e-bike has been delivered, please confirm receipt in our store to activate after-sales support.
User Manual
Carefully review the English user manual provided. For manuals in other languages, contact our customer service team.
Assembly & Safety Check
Follow the included assembly instructions. Ensure all bolts, handlebars, pedals, and other components are securely installed and tightened before your first ride.
Initial Charging
Fully charge your e-bike before first use. Avoid riding with low battery to maintain battery health.
Safe Charging Guidelines
Power off the e-bike before charging. Plug the charger into the bike first, then into the wall socket. Use only the original PURE UNICORN charger. After charging, unplug from the socket first, then disconnect from the bike. Avoid metal contact with the charging ports to prevent short circuits.
Pre-Ride Check & Riding Mode Familiarization
Inspect the brakes, tires, drivetrain, and display before each ride. Begin with lower assist levels or gears until you are comfortable with the e-bike’s functions.
Controller Protection (for High-Power Dual-Drive E-Bikes)
If your PURE UNICORN e-bike features dual-drive or high-power motors, use dual motor mode when climbing hills or riding at high speeds to avoid overloading the rear controller. Prolonged single-drive use under high load may cause overheating.
Avoid Altering Display Settings
Do not modify the P-settings or system parameters on your LCD display unless instructed. Improper changes may affect performance and void the warranty.
Battery Maintenance
Do not allow the battery to fully discharge. Charge regularly if the bike is unused (every 1–2 months), and store the battery with 30%–80% charge to preserve long-term health.
Own the Road. Ride PURE UNICORN — Every journey starts with a dream. Make yours unstoppable.
